Ship "Sign in with X" for your product
Turn a SqlOS-hosted app into the identity provider for your other apps: one OIDC client seed, scope display names, an Auth.js relying party, consent, and federated sign-out.
Your SqlOS host is already a full OpenID Connect Provider — discovery, ID tokens, UserInfo, and a consent screen are on by default (see OpenID Provider). This guide turns that into a product feature: a "Sign in with X" button in another app, where X is your app. The relying party needs no SqlOS SDK — only the standard OIDC discovery document, which is the point.
Everything below is runnable: the Sign in with X example boots both apps under .NET Aspire with one command.
1. Register the relying party as a client#
The identity-provider side is one AddSqlOS call. Seed a client for the app that will show the button:
builder.AddSqlOS<AppDbContext>(
db => db.UseSqlServer(connectionString),
options =>
{
options.ConfigureApplication("X", application =>
{
application.Origin = "https://x.example.com";
application.Brand(page => page.PrimaryColor = "#111827");
});
var auth = options.AuthServer;
auth.PublicOrigin = "https://x.example.com";
auth.Issuer = "https://x.example.com/sqlos/auth";
auth.SeedClient(client =>
{
client.ClientId = "app-y";
client.Name = "App Y";
client.Audience = "app-y";
client.RedirectUris = ["https://app-y.example.com/api/auth/callback/sqlos"];
client.AllowedScopes = ["openid", "profile", "email"];
client.ClientType = "public_pkce"; // browser app: no secret
client.RequirePkce = true;
client.IsFirstParty = false; // third party ⇒ consent screen
});
});Two decisions matter here:
AllowedScopesmust includeopenid. Every grant is the intersection of the client's allowlist and the request'sscope; withoutopenidgranted, no ID token is minted and the sign-in silently degrades to plain OAuth. The dashboard and hosted pages warn about this configuration gap, but the allowlist is where you prevent it.IsFirstParty = falseis a product choice, not a technicality. First-party clients skip consent. If the relying party is another team's app, a partner, or anything the user would think of as "a different application", leave it third-party so users see what they're sharing.
2. Name your scopes for the consent screen#
The consent screen renders each requested scope by its entry in the scope display-name catalog; uncataloged scopes fall back to the raw scope string. Seed the standard three:
auth.SeedScopeDisplayName("openid", "Sign you in",
"Confirm your identity to the app with an ID token.");
auth.SeedScopeDisplayName("profile", "See your name",
"Share your display name and username.");
auth.SeedScopeDisplayName("email", "See your email address",
"Share your email address and whether it is verified.");The catalog is also manageable from the dashboard and the Admin API, and the same entries feed the hosted page, the headless view model, and the control plane. SqlOS deliberately ships no default wording — what a scope grants is your product's promise to make.
3. Point the relying party at your discovery document#
Any OIDC library works from five standard values (issuer, client id, redirect URI, scopes, code + PKCE). With Auth.js (next-auth), the entire integration is one provider block:
providers: [
{
id: "sqlos",
name: "X",
type: "oauth",
wellKnown: "https://x.example.com/sqlos/auth/.well-known/openid-configuration",
authorization: { params: { scope: "openid profile email" } },
// idToken: true keeps openid-client's full OIDC callback (ID-token
// signature/iss/aud validation); the custom userinfo request sources
// profile claims from UserInfo, where OIDC Core §5.4 releases them.
idToken: true,
userinfo: {
async request({ client, tokens }) {
return await client.userinfo(tokens);
}
},
checks: ["pkce", "state"],
client: { token_endpoint_auth_method: "none" },
profile(profile) {
return { id: profile.sub, name: profile.name, email: profile.email };
}
}
]The subtlety worth keeping: SqlOS follows OIDC Core §5.4 and releases name/email claims from UserInfo, not the ID token, so the provider block validates the ID token and reads the profile from UserInfo. The ASP.NET Core equivalent (AddOpenIdConnect with GetClaimsFromUserInfoEndpoint = true) is in the OpenID Provider reference.
4. What the user experiences#

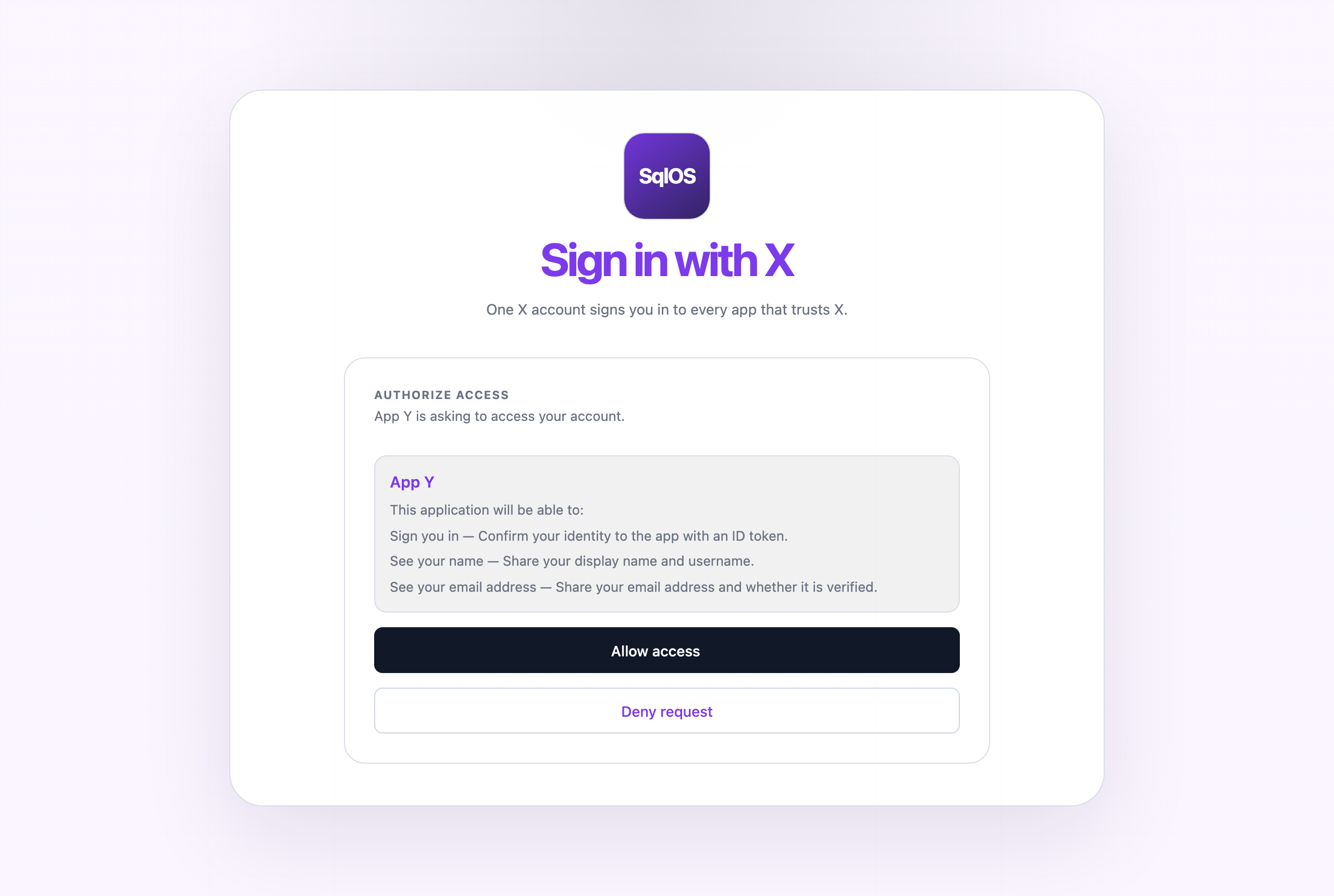

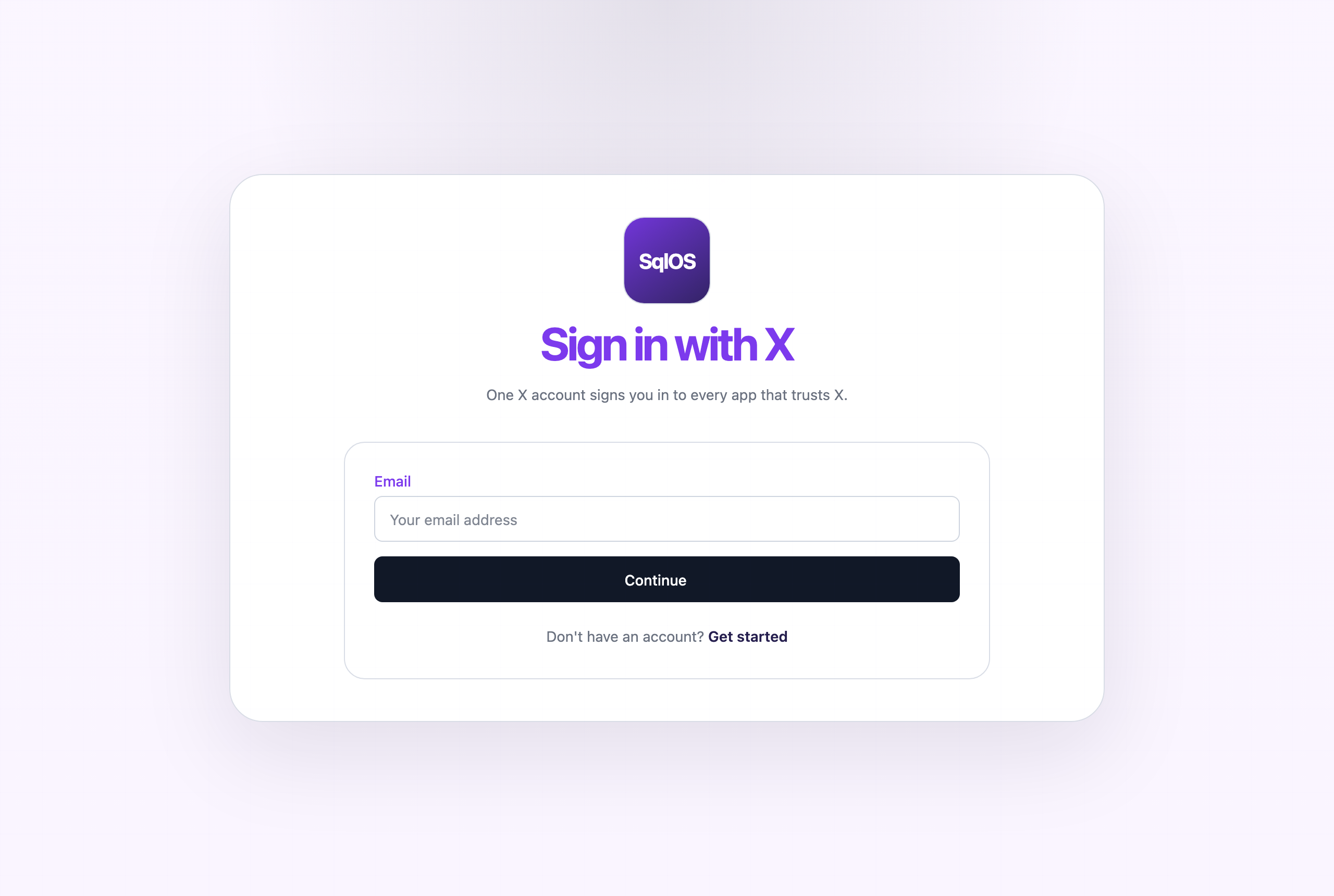

- First sign-in — X's hosted page (sign-up or login), then the consent screen above. Approval issues the code; the relying party exchanges it and validates the ID token against X's JWKS.
- Later sign-ins — the remembered grant plus X's live session make it silent: no password, no consent, straight back to the app. Consent re-appears only when the requested scopes escalate beyond the remembered grant or the client's sensitive metadata changes (see Consent).
- Sign-out — signing out of the relying party alone leaves X's session alive, so the next sign-in is silent. For a sign-out that really re-authenticates, end both layers — the relying party's session, then X's:
await signOut({ redirect: false }); // end the RP session
window.location.href =
`https://x.example.com/sqlos/auth/logout?returnTo=${encodeURIComponent(window.location.origin)}`;Spec-shaped RP-initiated logout (end_session_endpoint) is tracked as issue #266; this pattern is the supported equivalent today.
5. Custom UI, verification, and operations#
- Bring-your-own-UI: every step of this flow — including the consent view — is available headlessly for a product-owned login UI; see Build your own login and signup UI.
- Protocol conformance: the OpenID Foundation conformance suite (Config + Basic OP profiles, 36 modules) runs against a SqlOS deployment in this repo's CI on every change, and a real-browser end-to-end suite drives this exact federation flow. You inherit that verification by upgrading.
- Operations: the SqlOS dashboard shows the relying party's client with its OIDC capability and discovery URL, and each user's App grants — revoke one and the next sign-in re-prompts for consent.
Run the example#
cd examples/SqlOS.SignInWithX.AppY && npm install && cd -
dotnet run --project examples/SqlOS.SignInWithX.AppHostOpen http://localhost:3020 and click Sign in with X. The example README walks through what to look at, including the discovery document and the dashboard.
